Model Information
1956-1958

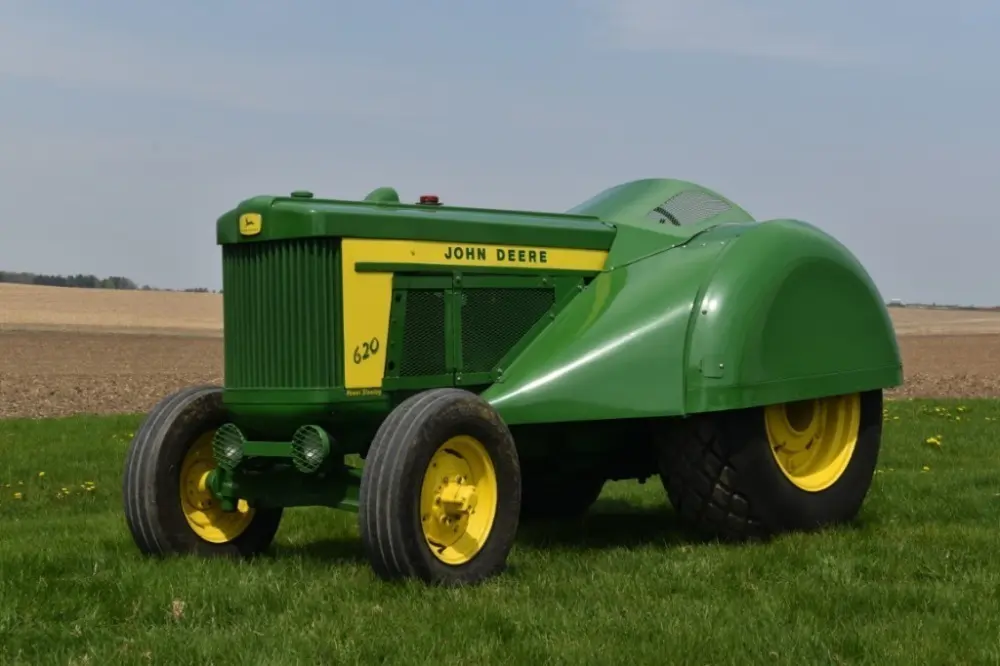

The 620 tractor was the direct replacement to the model 60 tractor. It offered close to the same horsepower of the John Deere 70 at a very close price comparrision. Advertised as a four bottom plow tractor, it could take on the dual task of a field workhorse and barn lot tractor. With the various chassis configurations it made the model 620 one of the most diverse tractors in the barn. The model 620 Orchard was the last two cylinder orchard model designed.
Power Train & Specs
Engine: John Deere
Cylinders: 2
Bore & Stroke: 5.50 x 6.38
RPM:
CID: 303
Fuel: Gasoline
Main Fuel Tank Cap: GAL.
Aux Fuel Tank Cap: 22 Gallon
Carburetor: Marvel Schebler
Cooling Capacity: 26 QTS.
Drawbar HP: 42.4
Belt PTO HP: 46.75
Weight: up to 6800 lbs
Length: 125.825 inches
Width: 86.625 inches
Height: 59.5 inches
Number of Gears: 6/1
Options:
Production & Serial Numbers
Total Produced: 133
