John Deere

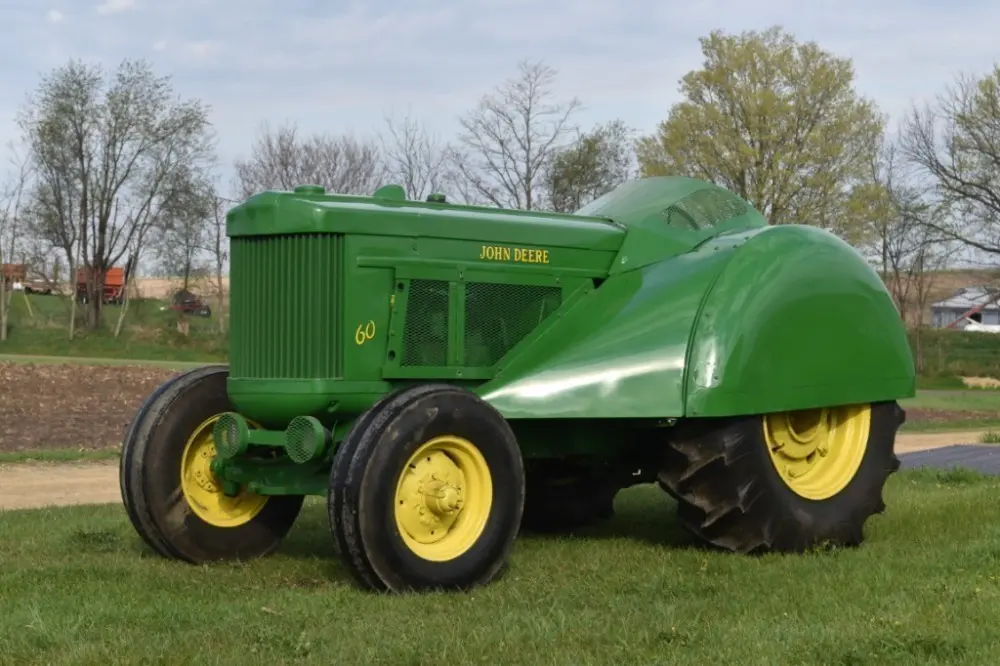

60 LP Orchard (1952-1956)

add yours to registry

add/remove from wishlist - view your list

add tractor information

Tractor Info


The largest orchard tractor designed was the model 60, based on the standard chassis the John Deere 60 with citrus skirts offered orchard growers the larger power and low profile that protected the fruit on the trees.

Tractor Info

Engine: John Deere

Cylinders: 2

Bore & Stroke: 5.50X6.75

RPM: 975

CID: 321

Fuel: Gas

Main Fuel Tank Cap: 20.5 Gal.

Aux Fuel Tank Cap:

Carburetor: Marvel Schebler

Cooling Capacity: 33 QTS.

Drawbar HP: 36.94 Hp.

Belt PTO HP: 41.57 Hp.

Weight: 4347 lbs

Length: 152.5 inches

Width: 77.750 inches

Height: 93 inches

Number of Gears: 6/1


Total Produced: 45

1952: 6000001

1953: 6007694

1954: 6027995

1955: 6042500

1956: 6057650
