540 (1958-1962)

add yours to registry

add/remove from wishlist - view your list

add tractor information

Tractor Info

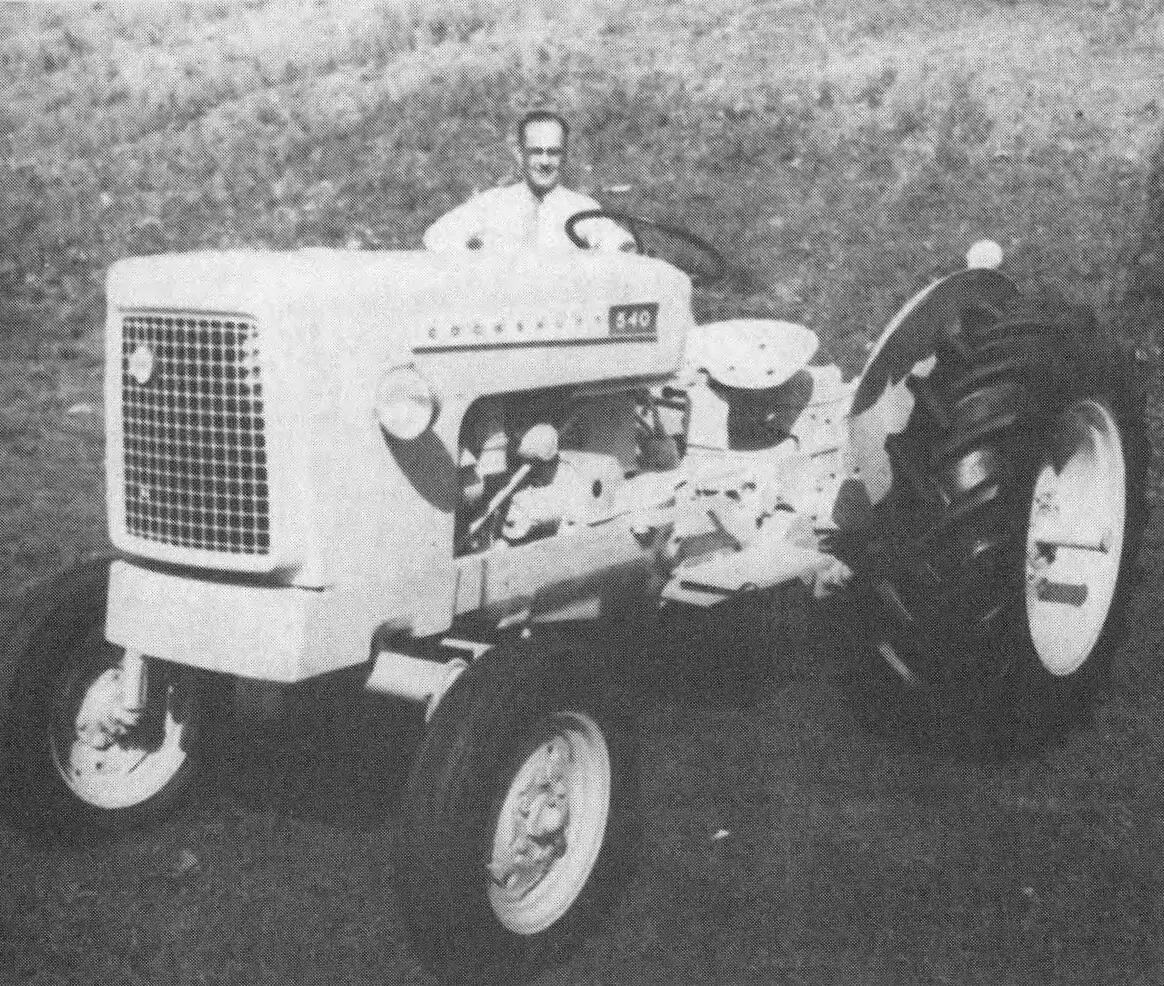

Part of the 500 series, the 540 was a utility tractor manufactured in Brantford, Ontario, Canada. It had a Continental 2.7L four-cylinder gasoline engine and was 4×2 2WD with a six-speed unsynchronized gear transmission and an open operator station.

Tractor Info

Engine: Continental

Cylinders: 4

Bore & Stroke: 3.4375x4.375

RPM: 1800

CID: 162

Fuel: Gas

Main Fuel Tank Cap: 13.5

Aux Fuel Tank Cap:


Cooling Capacity:

Drawbar HP: 26

Belt PTO HP: 31

Weight: lbs 4295

Length: inches

Width: inches

Height: inches

Number of Gears: 6/2


1958: AM1001

1959: AN5001

1960: AO1001

1961: AP1001

1962: AR1001

Content contributed by:

Last Updated: June 3rd, 2022
