Model Information
1956-1958

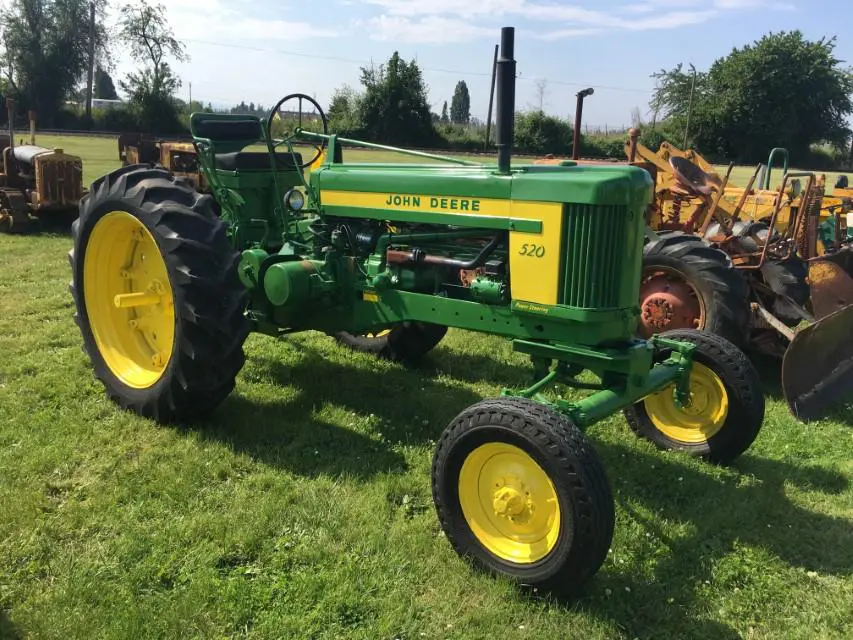

The 520 tractor offered big farm options for the small farm operation. When ordering a 520 some of the most wanted options was the Float Ride seat, universal three point hitch, and live 540 PTO. The John Deere 520 was only offered in a Row Crop chassis.
Power Train & Specs
Engine: John Deere
Cylinders: 2
Bore & Stroke: 4.687 x 5.5
RPM:
CID: 189.8
Fuel: Distillate
Main Fuel Tank Cap: 18 GAL.
Aux Fuel Tank Cap:
Carburetor: Marvel Schebler
Cooling Capacity: 18 QTS.
Drawbar HP: 23.98
Belt PTO HP: 25.41
Weight: 6600 lbs
Length: 132.75 inches
Width: 86.625 inches
Height: 83.325 inches
Number of Gears: 6/1
Options:
Production & Serial Numbers
Total Produced: 244
