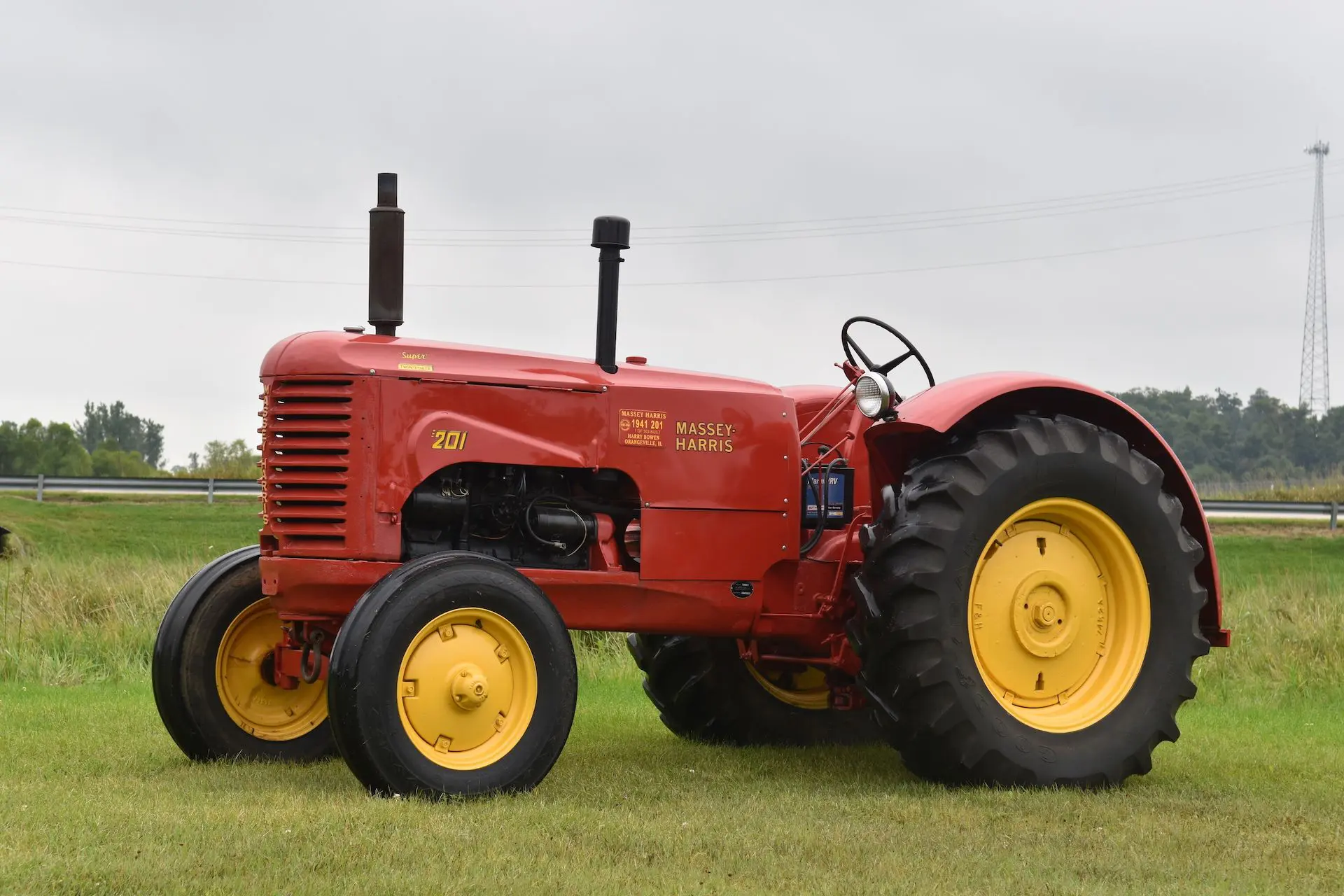

201 (1940-1947)

add yours to registry

add/remove from wishlist - view your list

add tractor information

Tractor Info


Massey-Harris came out with the 200 series tractors in 1940 all large 6 cylinder tractors with very similar transmissions. The 201 has a Chrysler 241.6 cu. In. engine. The 200 series also has 4 forward speeds. The 201 gasoline models also has high compression.

Tractor Info

Engine: Chrysler

Cylinders: 6

Bore & Stroke: 3.375 x 4.50

RPM: 1,700

CID: 241.5

Fuel: Gas

Main Fuel Tank Cap: 21

Aux Fuel Tank Cap:

Carburetor: Schebler

Cooling Capacity: 3.75

Drawbar HP:

Belt PTO HP: 45

Weight: 6,435 lbs



Number of Gears: 4/1


Total Produced: 503

1940: 91201-91540

1941: 91541-91690

1942: 91691-91703

1943: 98674

1944: 98807

1945: None

1946: 99689

1947: 101120

Location: Rear left hand side of the tractor frame forward of the transmission case

Content contributed by:

related models
