Farmall

340 (1958-1963)

add yours to registry

add/remove from wishlist - view your list

add tractor information

Photos

Tractor Info

1958-1963

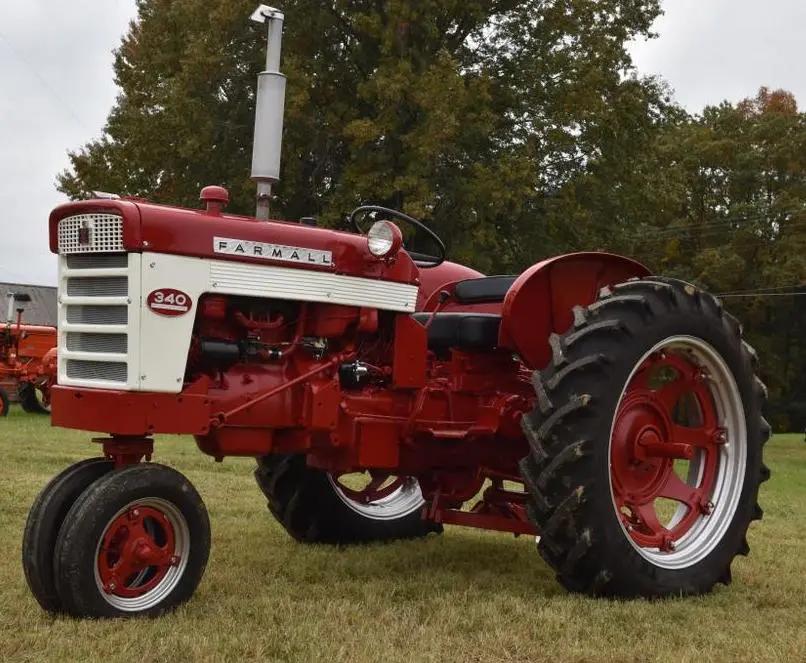

A medium-sized row crop tractor, the 340 was a completely new design, unrelated to its predecessor, the 350. It was available as a utility version (International Harvester IH 340) and an industrial version (International 340). The T-340 or the TD-340 was a crawler version available with a diesel engine. There were orchard and grove configurations available.


Tractor Info

Engine: IHC C-135

Cylinders: 4

Bore & Stroke: 3.25x4.0625

RPM: 2000

CID: 135

Fuel: Gasoline

Main Fuel Tank Cap: 15.3

Aux Fuel Tank Cap:

Carburetor: Marvel-Schebler or Zenith

Cooling Capacity: 3.8

Drawbar HP: 31.76

Belt PTO HP: 34.74

Weight: 4,735 lbs

Length: 117 inches

Width: 64 inches

Height: 59 inches

Number of Gears: 5/1-10/2

Options:


Total Produced: 7500

1958: 501

1959: 2723

1960: 5411

1961: 6642

1962: 7276

1963: 7677

Location: Plate is on the left side of the clutch housing



Content contributed by:

Last Updated: June 9th, 2022
